SolarMeasure

Solar Module Measurement

The technology series SolarMeasure complements the Dr. Schenk product range with precise and reliable measurement solutions which focus on the physical and electronical characteristics of solar modules. These innovative developments are available as stand-alone systems or as options integrated into SolarInspect systems.

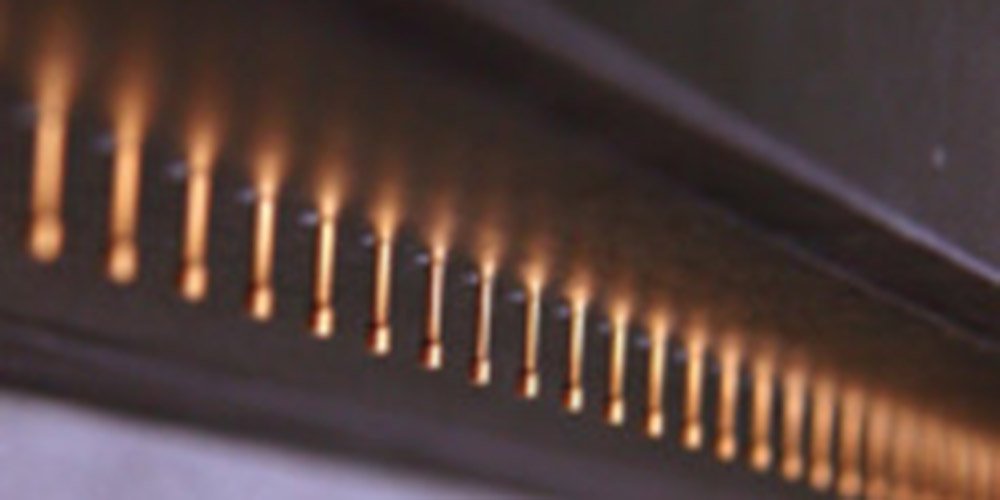

Electrical Insulation Tester
This stand-alone measurement solution test the electrical insulation between the solar cells after scribing. The system detects shorts and minimum resistance between neighboring cells.
Microscope Station for Solar Scribe Inspection
Based on a high resolution matrix camera the SolarMeasure Microscope Station has been developed as measurement solution focusing on the width and distance between scribe lines in solar panels.
Haze Monitoring
The Dr. Schenk Haze or Light Trapping Monitoring option has been developed in order to check the layer structure of incoming TCO coated glass.

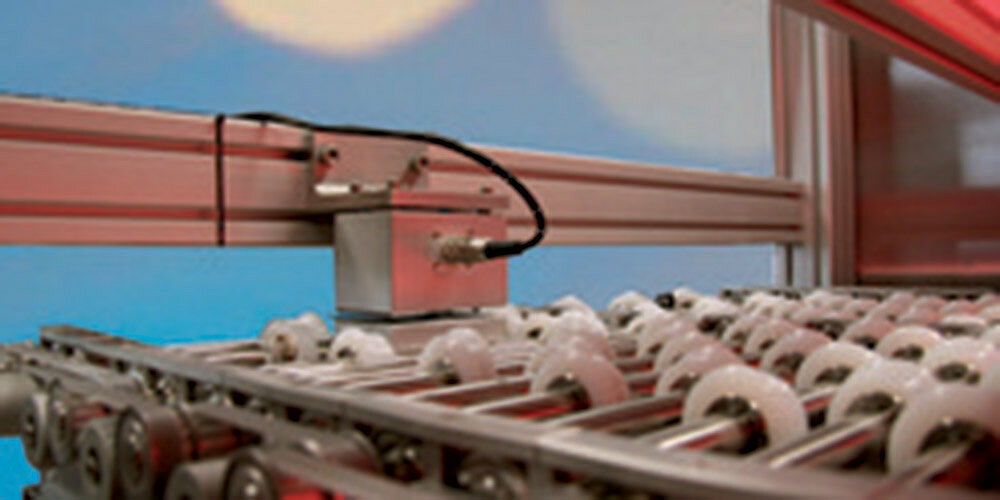

Resistivity Measurement
This add-on option to thin film module inspection measures the sheet resistance of the solar panel's substrate coating.

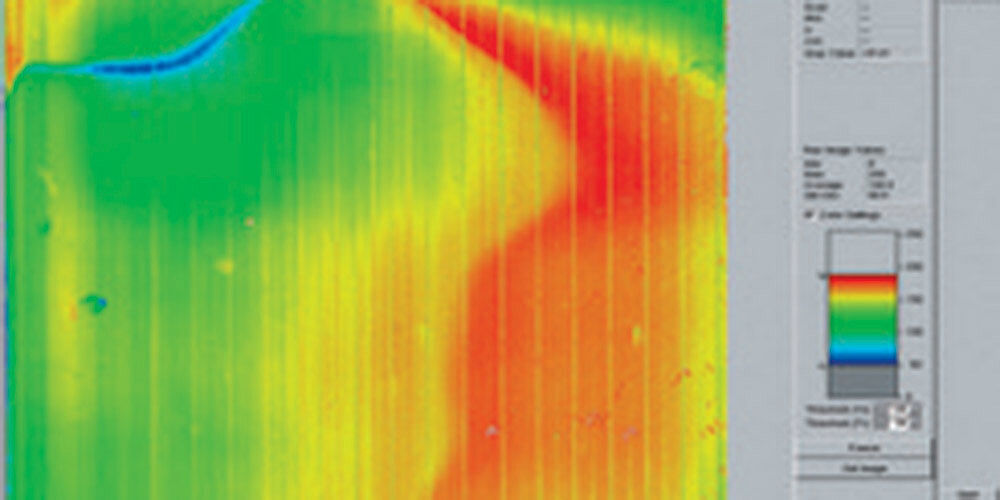

Layer Thickness Monitoring
With this innovative option PV manufacturers can monitor local thickness variations after layer deposition steps covering the entire panel area. It supports the control of the coating process.
TCO Tester for Bare & TCO-Coated Solar Glass
Dr. Schenk's TCO Tester measures haze, layer thickness and layer resistivity.
Dimension Measurement
As measurement update for SolarInspect this system measures length, width and right angularity of the glass panels at the beginning of the production line.
